Wireless Microphone Receiver

WMX-7-RX

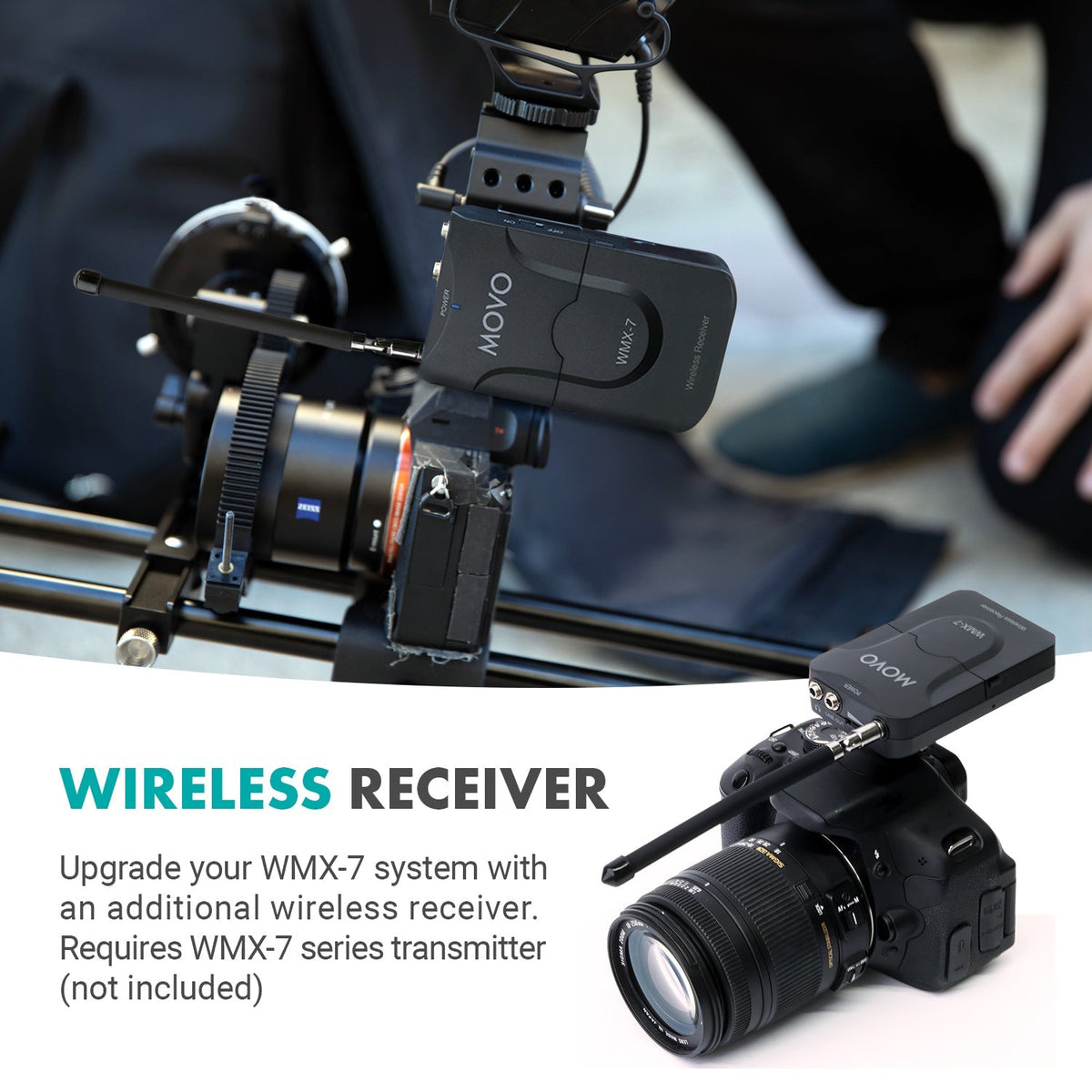

Add an additional receiver to your WMX-7 system

Buy Now, pay later with
About This Item

Features

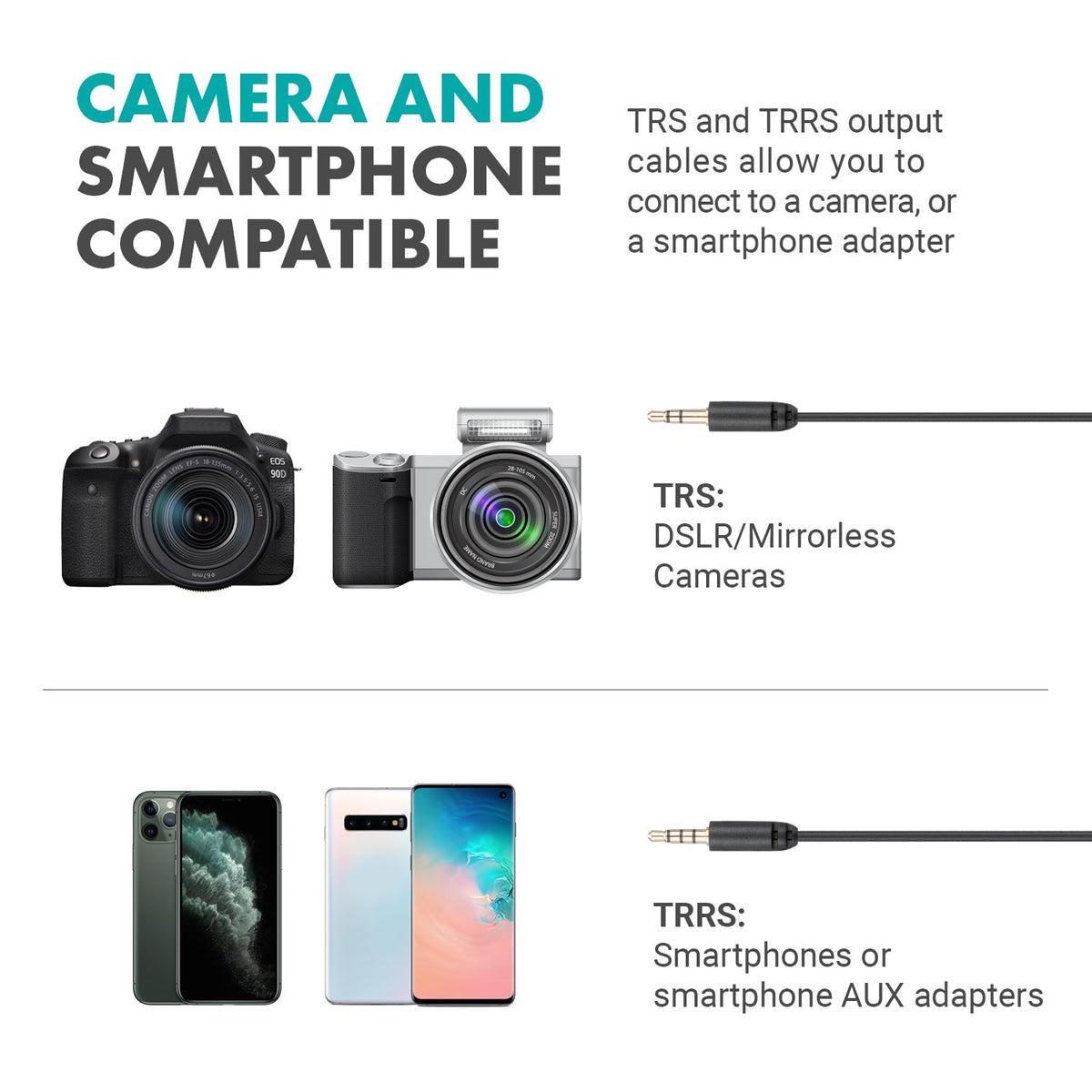

  • Compatible with smartphones, tablets, DSLRs, PCs etc.
  • High-band VHF operation for superior sound

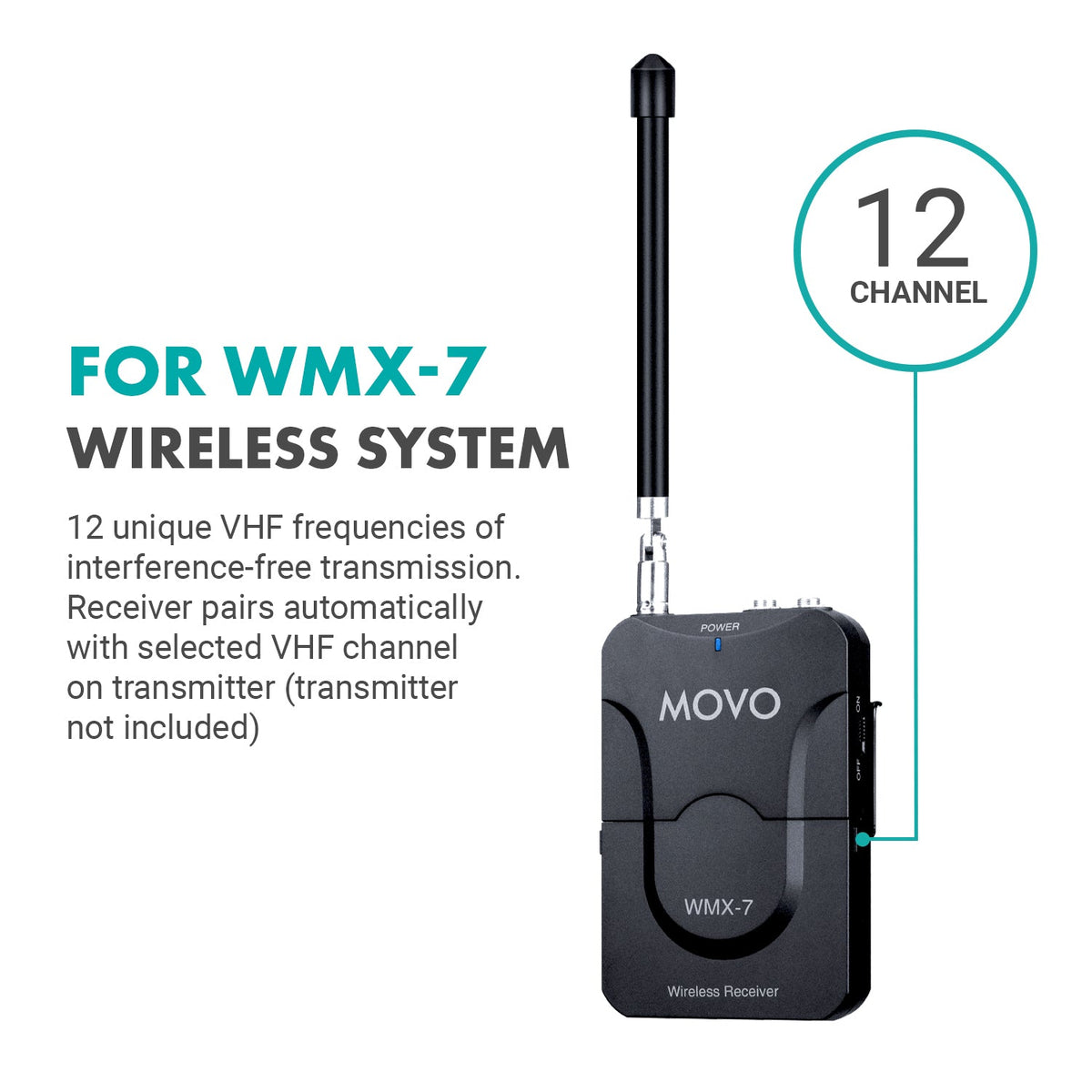

  • 12 switchable channels to keep you free from interference
  • Detachable and flexible antenna with rotating 360º function
  • Automatically matched for transmitter
  • Volume control wheel

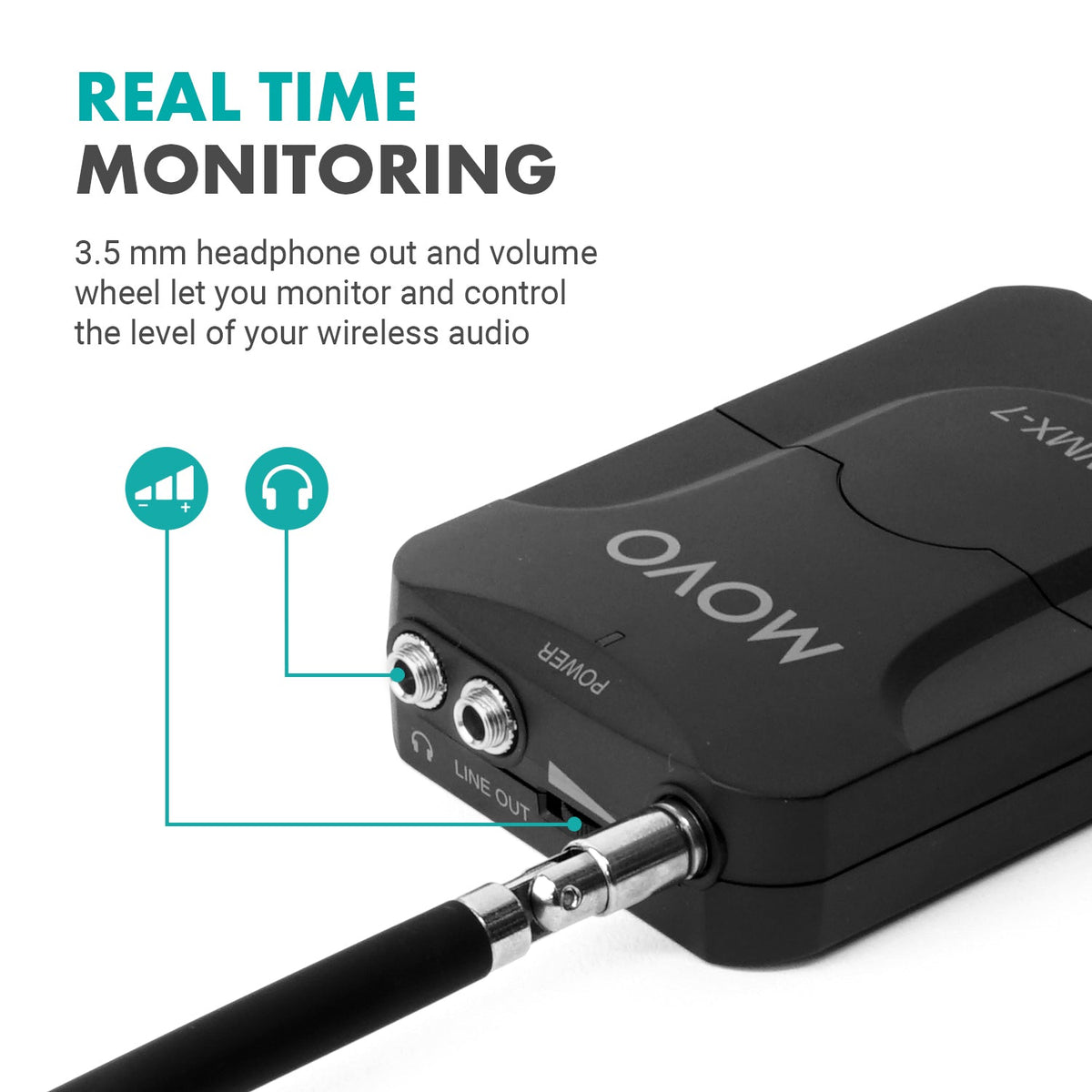

  • Real-time playback monitoring

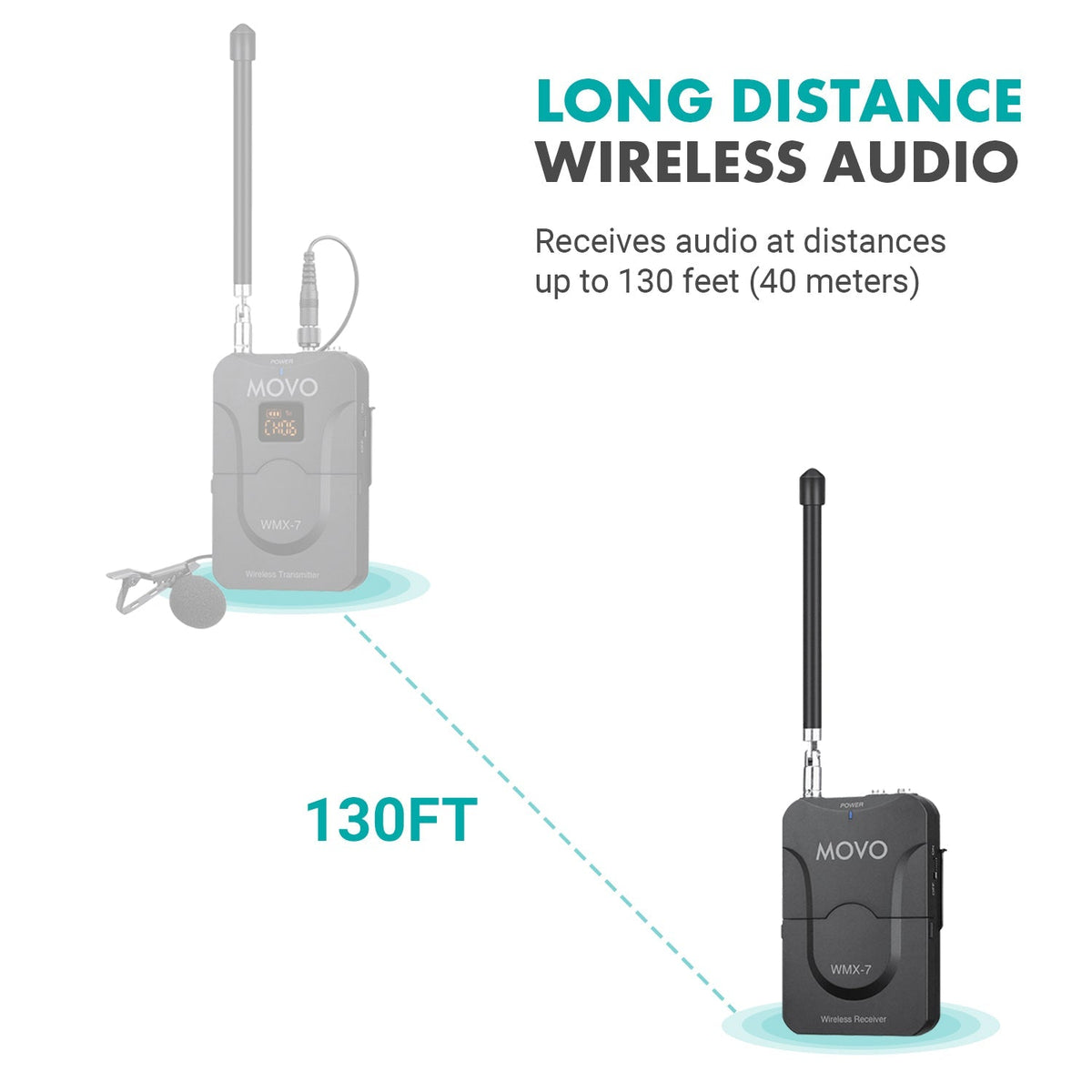

  • Operational range up to 131 feet away without obstacles

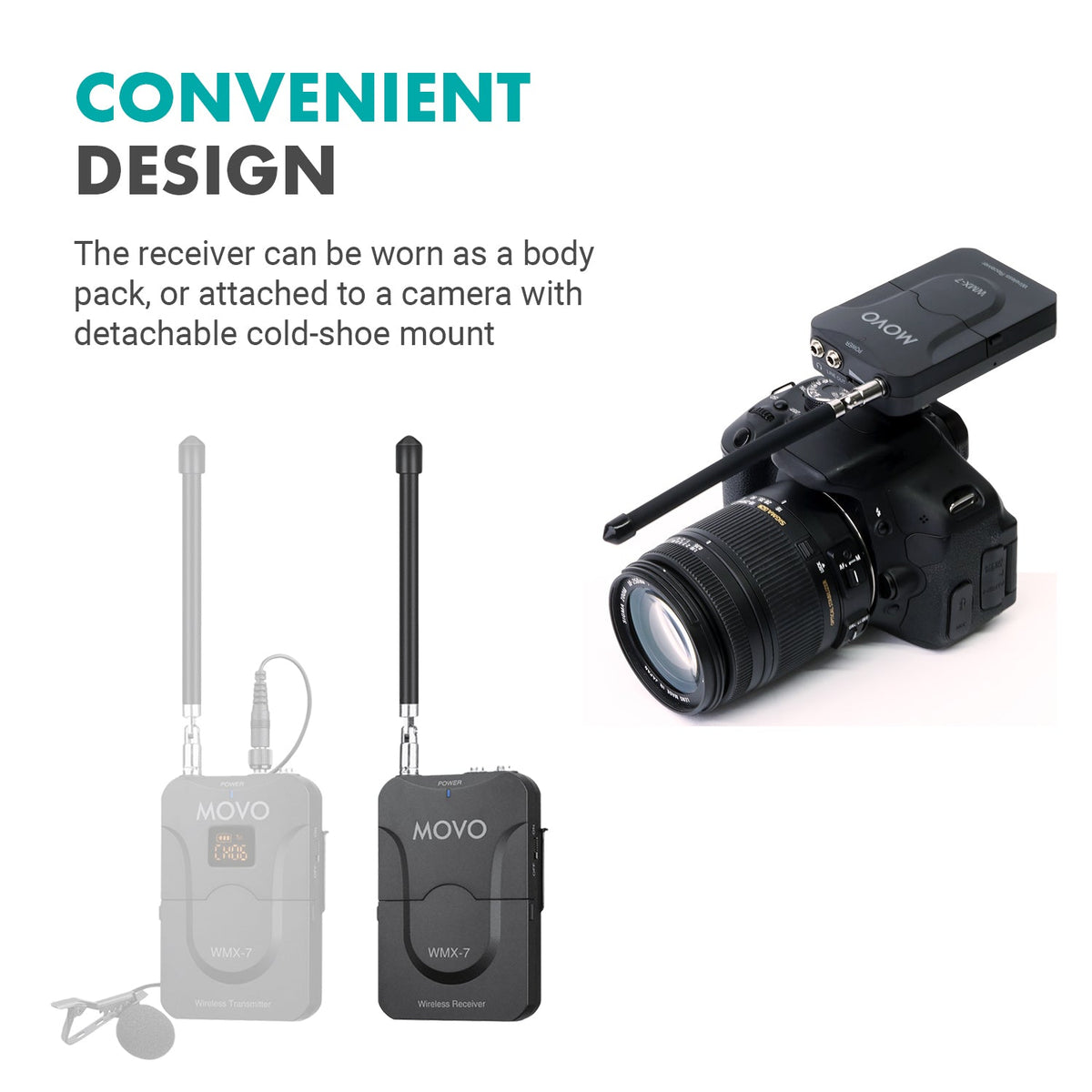

  • Compact and easy-to-use design
  • Powered by two AA-size alkaline batteries for both receiver and transmitter

Manual


View WMX-7-RX manual
Product Specification

System

    Operating Frequencies: 204-215MHz
    Modulation Frequency: DQPSK
    Channels: 12


Transmitter

    Modulation Sensitivity: 6 mV input for full deviation
    Battery: LR6/AA size alkaline battery (not included)
    Current Consumption: 160 mA
    Dimensions: 102 x 62.0 x 44.7 mm (4.0" x 2.4" x 1.8")
    Antenna Length: 142mm (5.6")
    Weight: 80 g (2.8 oz) without battery


Receiver

    Reception Sensitivity: 2 µV for 30 dB S/N
    Output Connector: 3.5 mm (1/8”) TRS
    Battery: LR6/AA size alkaline battery (not included)
    Current Consumption: 140 mA
    Dimensions: 102 x 62.0 x 44.7 mm (4.0" x 2.4" x 1.8")
    Antenna Length: 142mm (5.6")
    Weight: 80 g (2.8 oz) without battery
